Carrier frequency range | 615MHz-665MHz |
Bandwidth | 2X32MHz |
Modulation | FM |
Maximum frequency deviation | ±45KHz |
Frequency response | 50Hz-15KHz |
Signal-to-noise ratio (S/N) | >105dB(A) |
Distortion (1 KHz) | <0.3% |
Operating temperature | -10℃-55. |

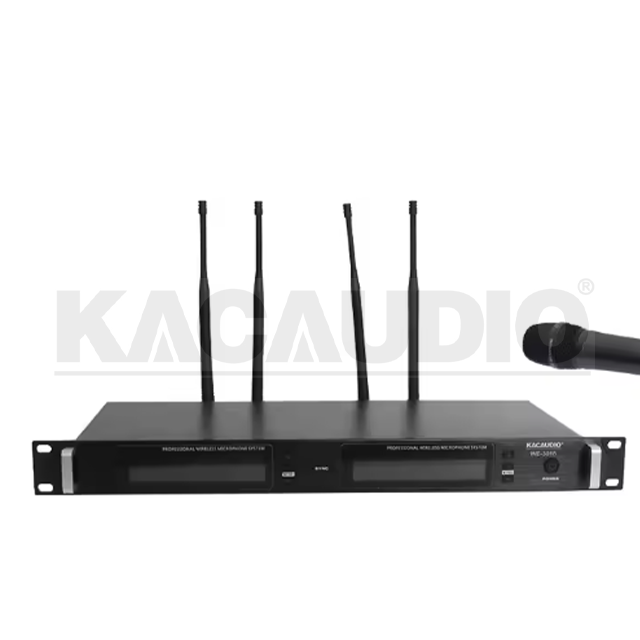

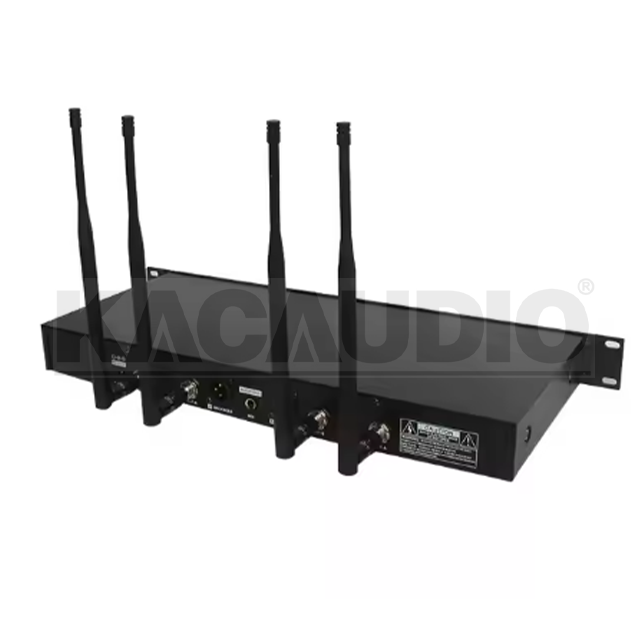

Receiver
Oscillator mode | PLL |
Spurious suppression | ≥80dB |
Image suppression | ≥80dB |
Sensitivity | 5dBuV |
Audio output level | Balanced |
Output (XLR outputjack) | 250mV/600 Q Unbalanced output (1/4” output jack) 400mV/K3Ω |
Operating voltage | DC 12-16V |
Operating current | ≤350mA |

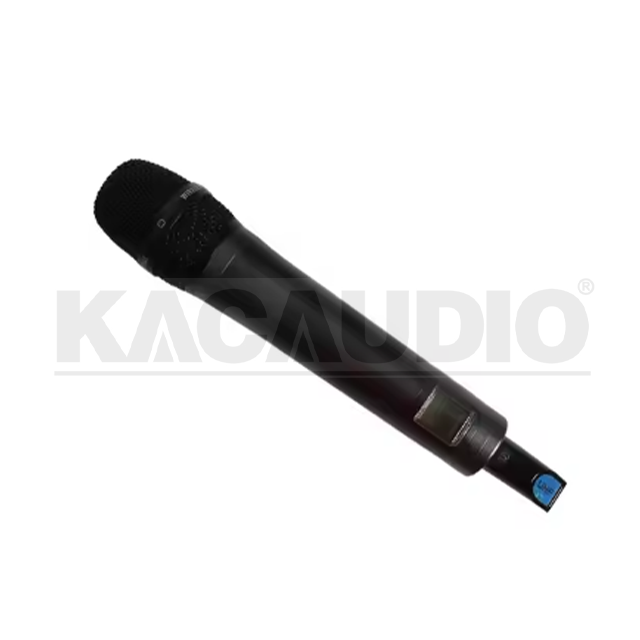

Transmitter
RF power output | Maximum 30mW |
Oscillator mode | PLL |
Transmit frequency stability | <30ppm |
Dynamic range | ≥100dB (A) |
Frequency response | 50Hz-15KHz |
Maximum input sound pressure | 130dB SPL |
Power supply | 2 AA batteries |
