Factory Direct PA-5080USB 80W Home Amplifier 70V 100V Integrated Mixer Karaoke Amplifier Aluminum

Availability:
Inquire Add to Basket

  • PA-5080USB

  • KACAUDIO

  • 8518500000

Product Description

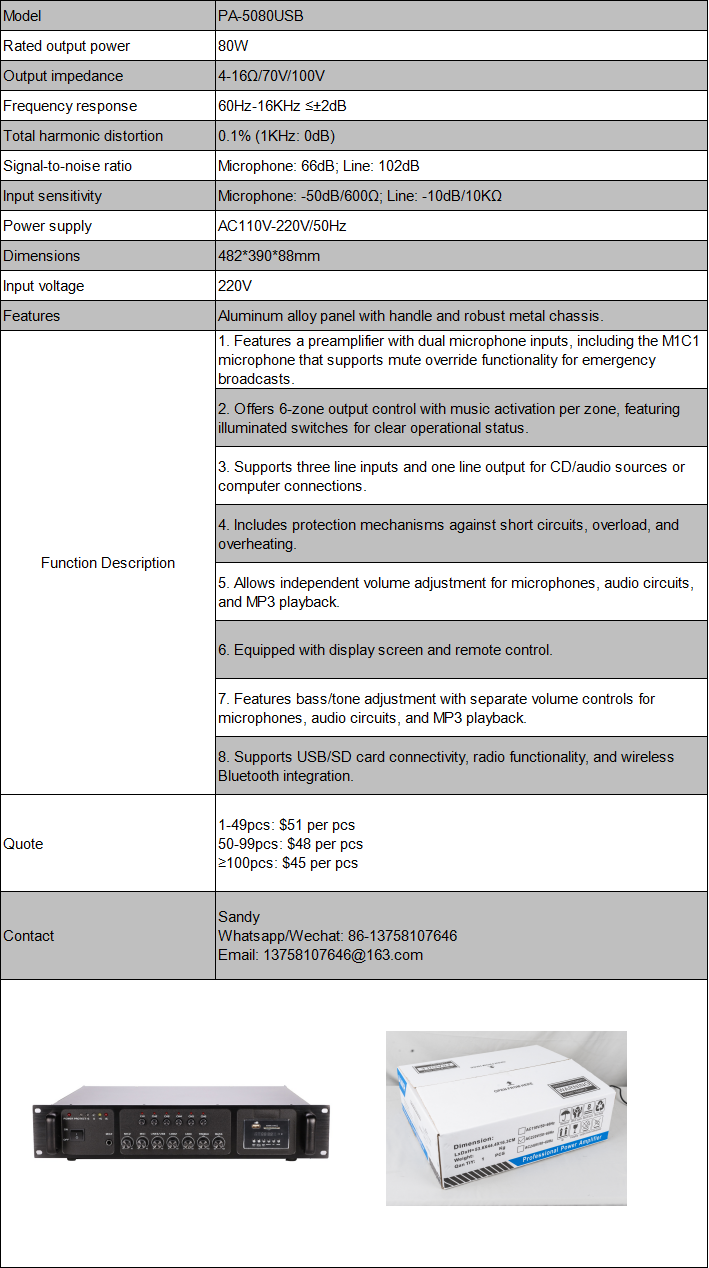

PA-5080USB

PA-5080USB
ModelPA-5080USB
Rated output power80W
Output impedance4-16Ω/70V/100V
Frequency response60Hz-16KHz ≤±2dB
Total harmonic distortion0.1% (1KHz: 0dB)
Signal-to-noise ratioMicrophone: 66dB; Line: 102dB
Input sensitivityMicrophone: -50dB/600Ω; Line: -10dB/10KΩ
Power supplyAC110V-220V/50Hz
Dimensions48239088mm
Input voltage220V
FeaturesAluminum alloy panel with handle and robust metal chassis.
Function Description

1. Features a preamplifier with dual microphone inputs, including the M1C1 microphone that supports mute override functionality for emergency broadcasts.
2. Offers 6-zone output control with music activation per zone, featuring illuminated switches for clear operational status.
3. Supports three line inputs and one line output for CD/audio sources or computer connections.
4. Includes protection mechanisms against short circuits, overload, and overheating.
5. Allows independent volume adjustment for microphones, audio circuits, and MP3 playback.
6. Equipped with display screen and remote control.
7. Features bass/tone adjustment with separate volume controls for microphones, audio circuits, and MP3 playback.
8. Supports USB/SD card connectivity, radio functionality, and wireless Bluetooth integration.

Quote

1-49pcs: $51 per pcs
50-99pcs: $48 per pcs
≥100pcs: $45 per pcs

Contact

Sandy
Whatsapp/Wechat: 86-13758107646
Email: 13758107646@163.com
