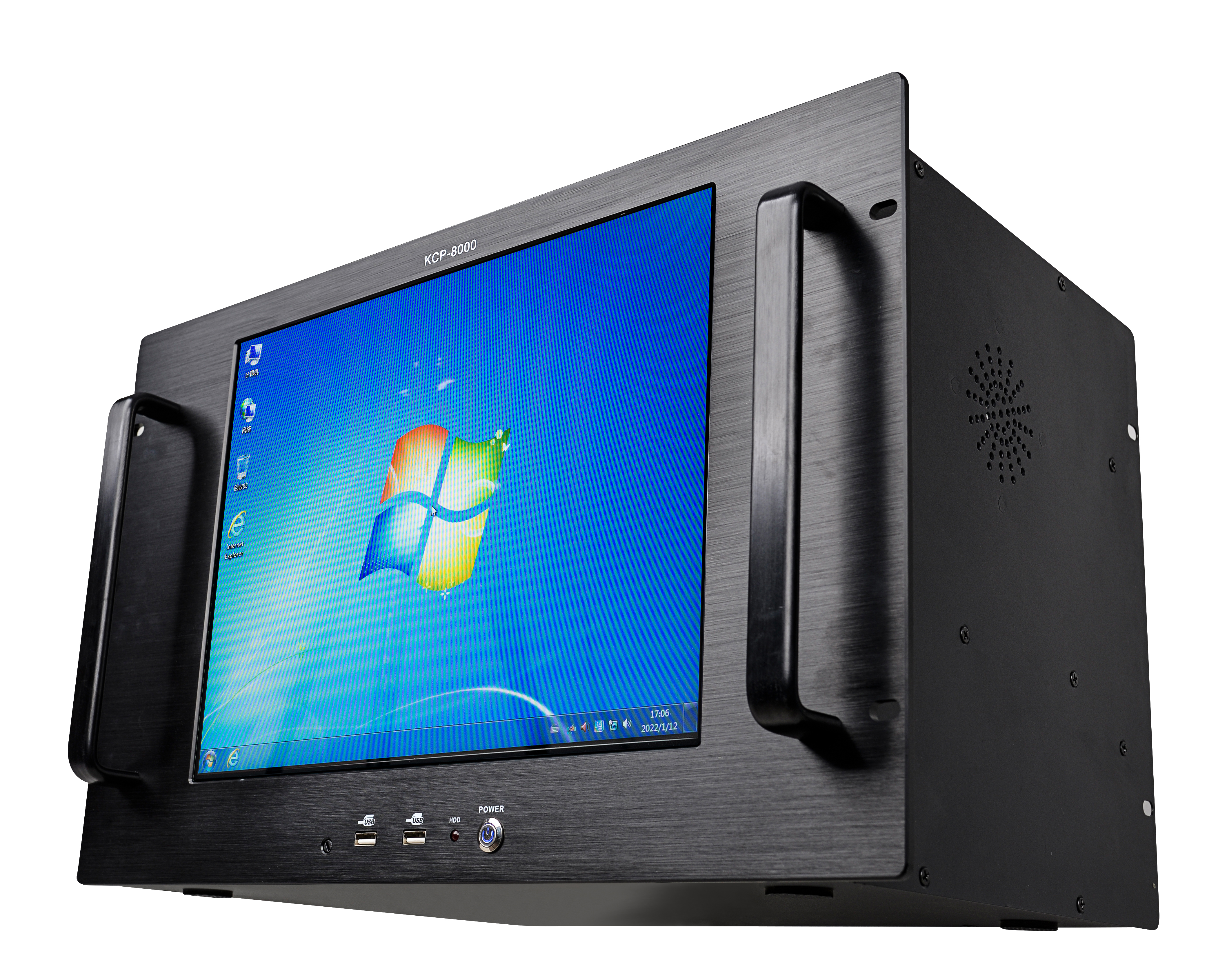

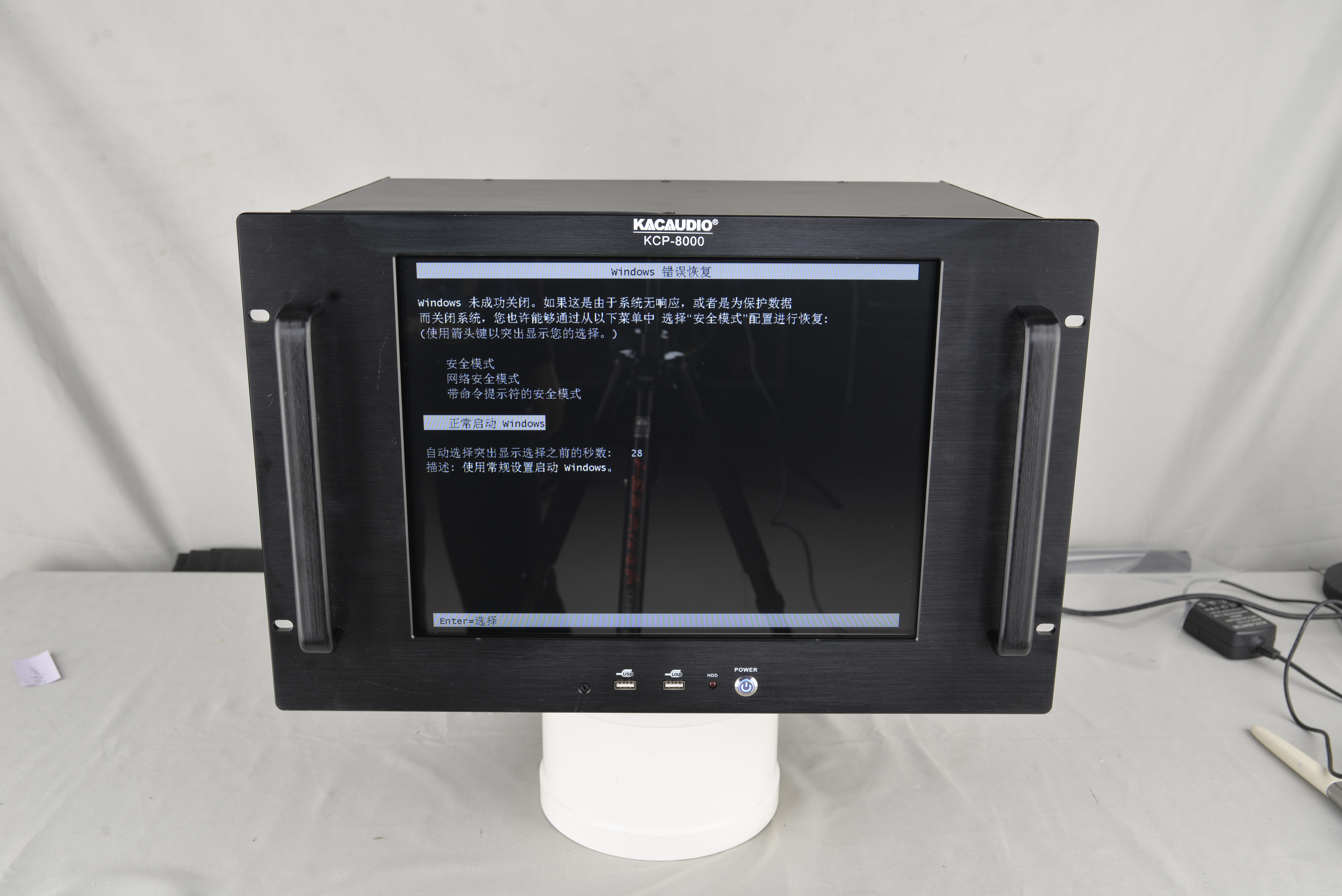

KCP-8000
KACAUDIO
8471419000

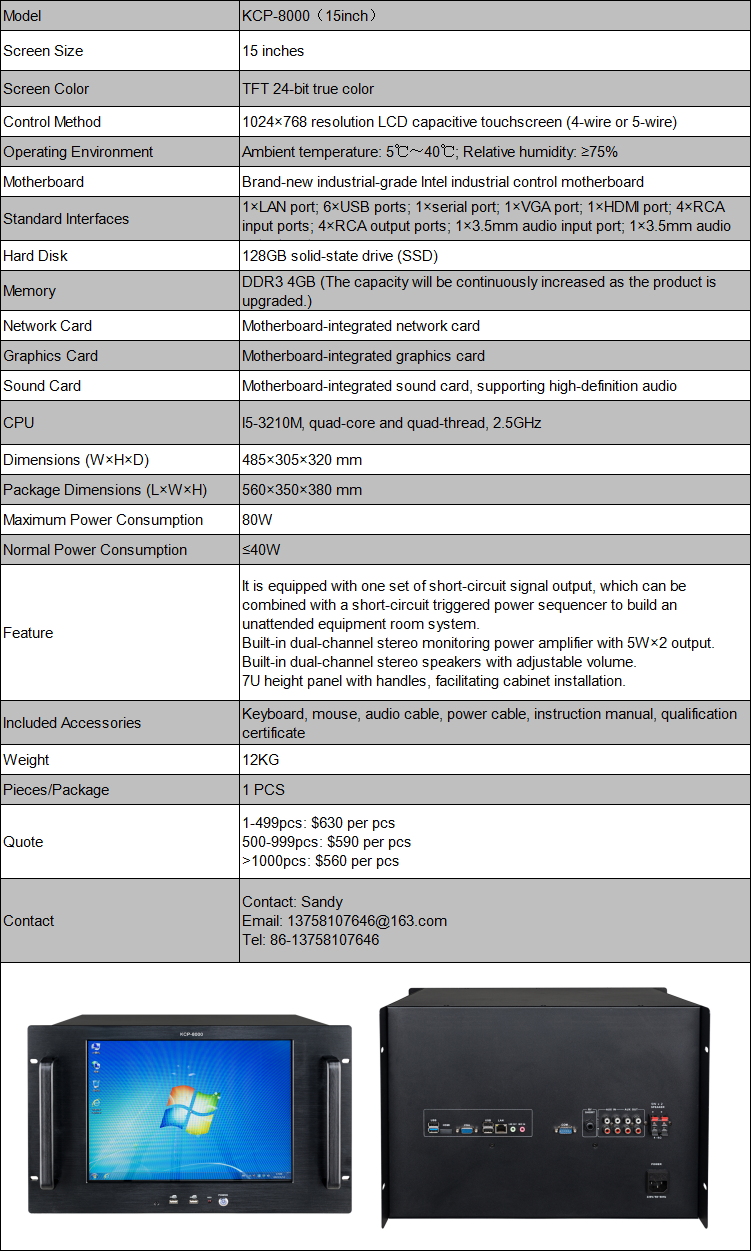

Model | KCP-8000（15inch） |
Screen Size | 15 inches |
Screen Color | TFT 24-bit true color |
Control Method | 1024×768 resolution LCD capacitive touchscreen (4-wire or 5-wire) |
Operating Environment | Ambient temperature: 5℃～40℃; Relative humidity: ≥75% |
Motherboard | Brand-new industrial-grade Intel industrial control motherboard |

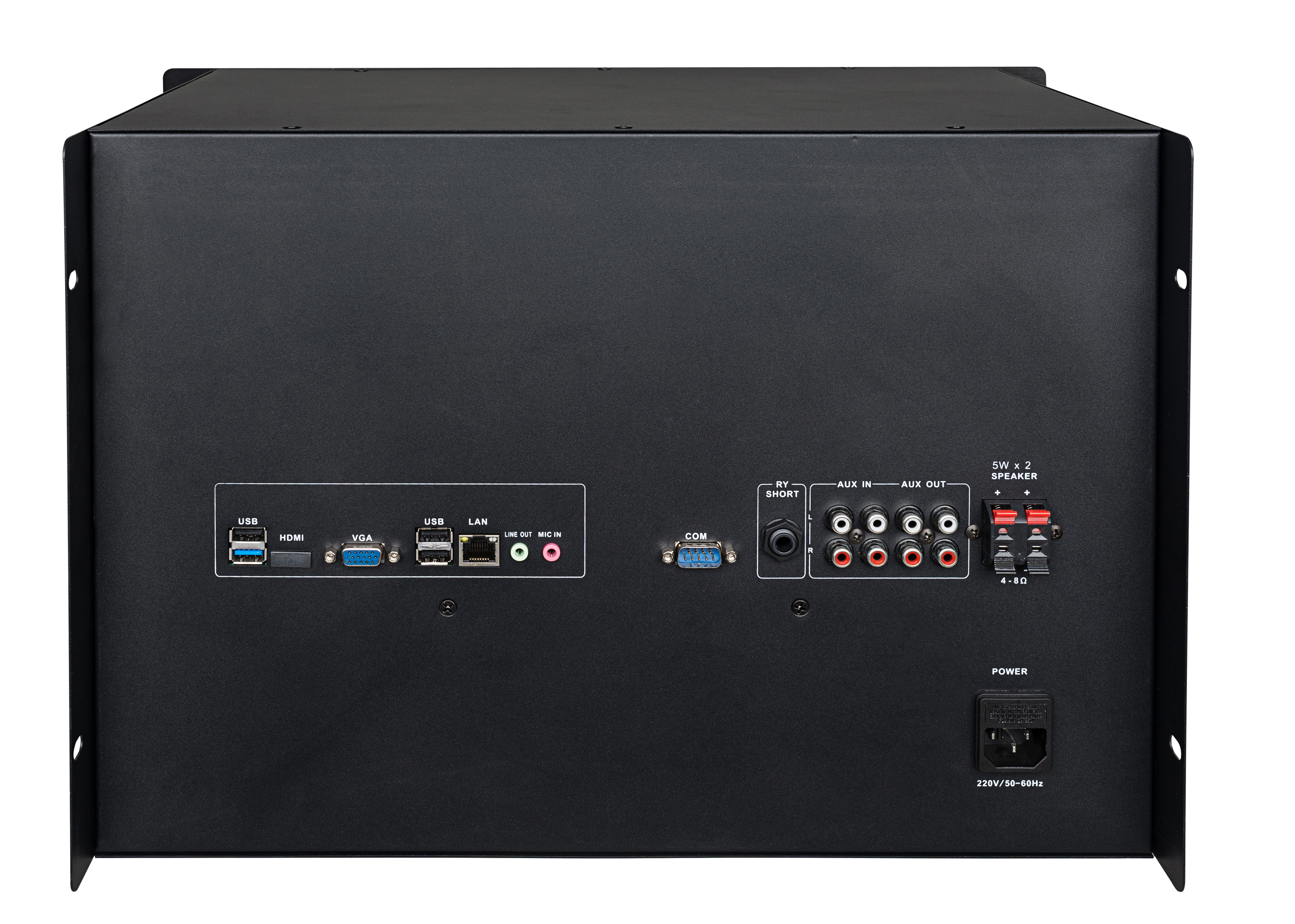

Standard Interfaces | 1×LAN port; 6×USB ports; 1×serial port; 1×VGA port; 1×HDMI port; 4×RCA input ports; 4×RCA output ports; 1×3.5mm audio input port; 1×3.5mm audio |
Hard Disk | 128GB solid-state drive (SSD) |
Memory | DDR3 4GB (The capacity will be continuously increased as the product is upgraded.) |
Network Card | Motherboard-integrated network card |
Graphics Card | Motherboard-integrated graphics card |
Sound Card | Motherboard-integrated sound card, supporting high-definition audio |
CPU | I5-3210M, quad-core and quad-thread, 2.5GHz |
Dimensions (W×H×D) | 485×305×320 mm |
Package Dimensions (L×W×H) | 560×350×380 mm |
Maximum Power Consumption | 80W |
Normal Power Consumption | ≤40W |
Feature | It is equipped with one set of short-circuit signal output, which can be combined with a short-circuit triggered power sequencer to build an unattended equipment room system. Built-in dual-channel stereo monitoring power amplifier with 5W×2 output. Built-in dual-channel stereo speakers with adjustable volume. 7U height panel with handles, facilitating cabinet installation. |

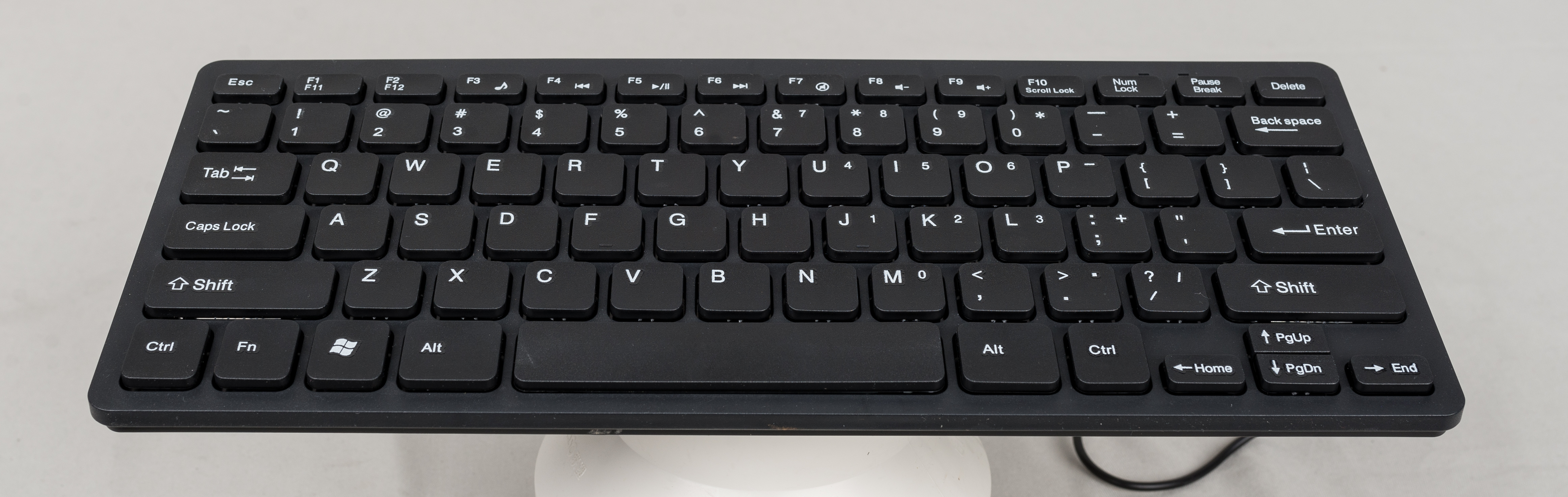

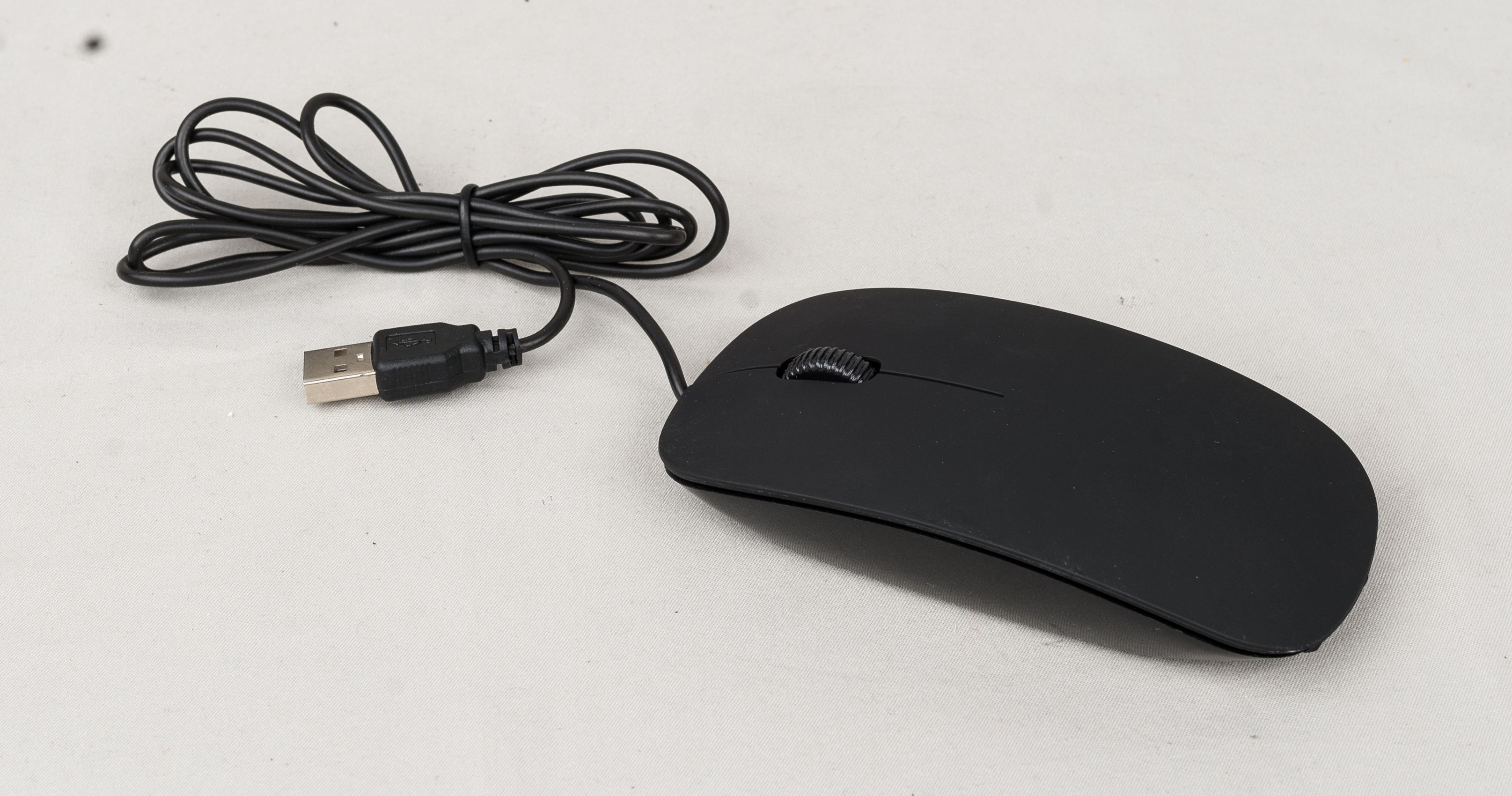

Included Accessories | Keyboard, mouse, audio cable, power cable, instruction manual, qualification certificate |
Weight | 12KG |
Pieces/Package | 1 PCS |
Quote | 1-499pcs: $630 per pcs 500-999pcs: $590 per pcs >1000pcs: $560 per pcs |
Contact | Contact: Sandy Email: 13758107646@163.com Tel: 86-13758107646 |
