Home » Products List » Amplifier » J08D 80W 70V/100V 350W Integrated Power Amplifier Home Audio Karaoke PA System with Mic Input

Share to:

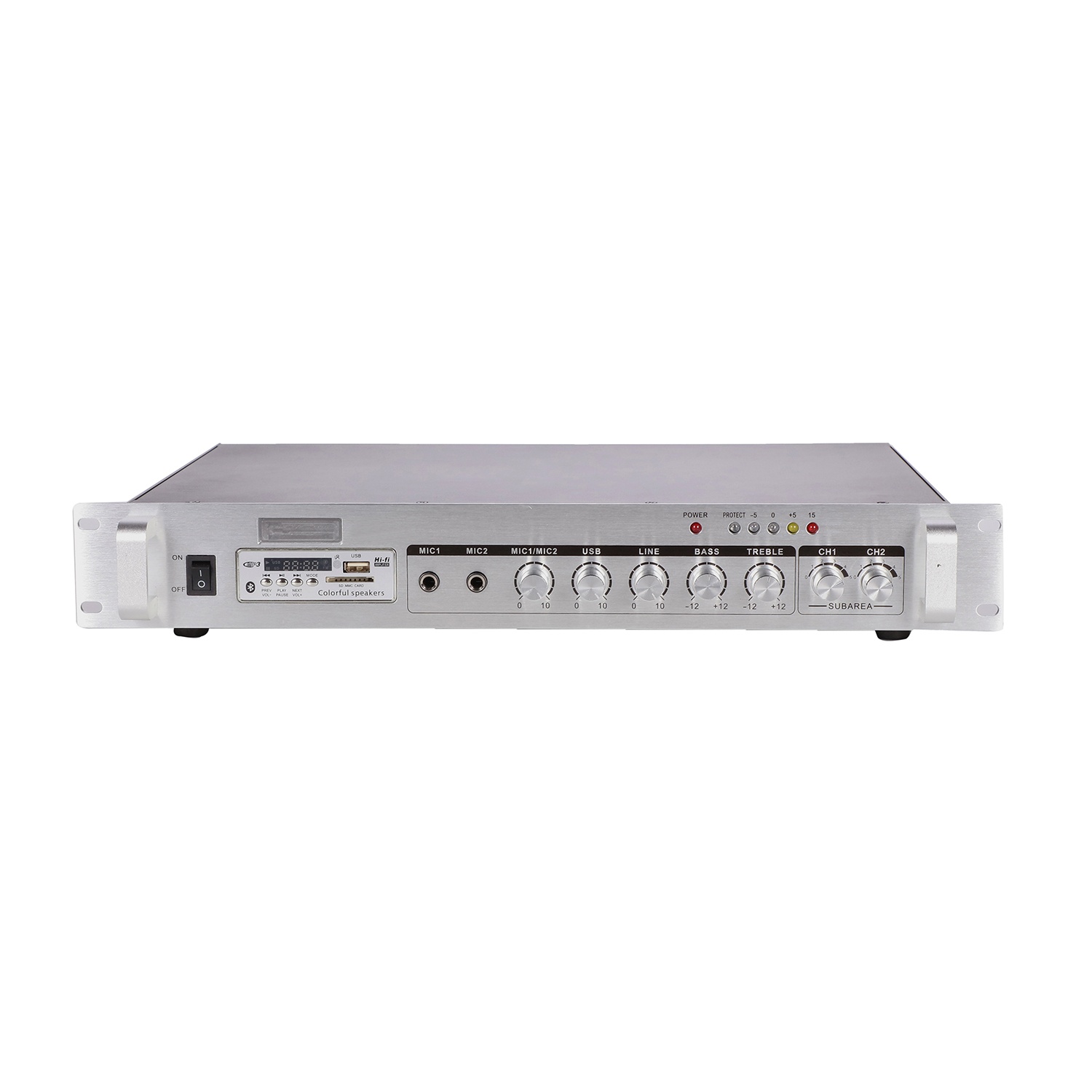

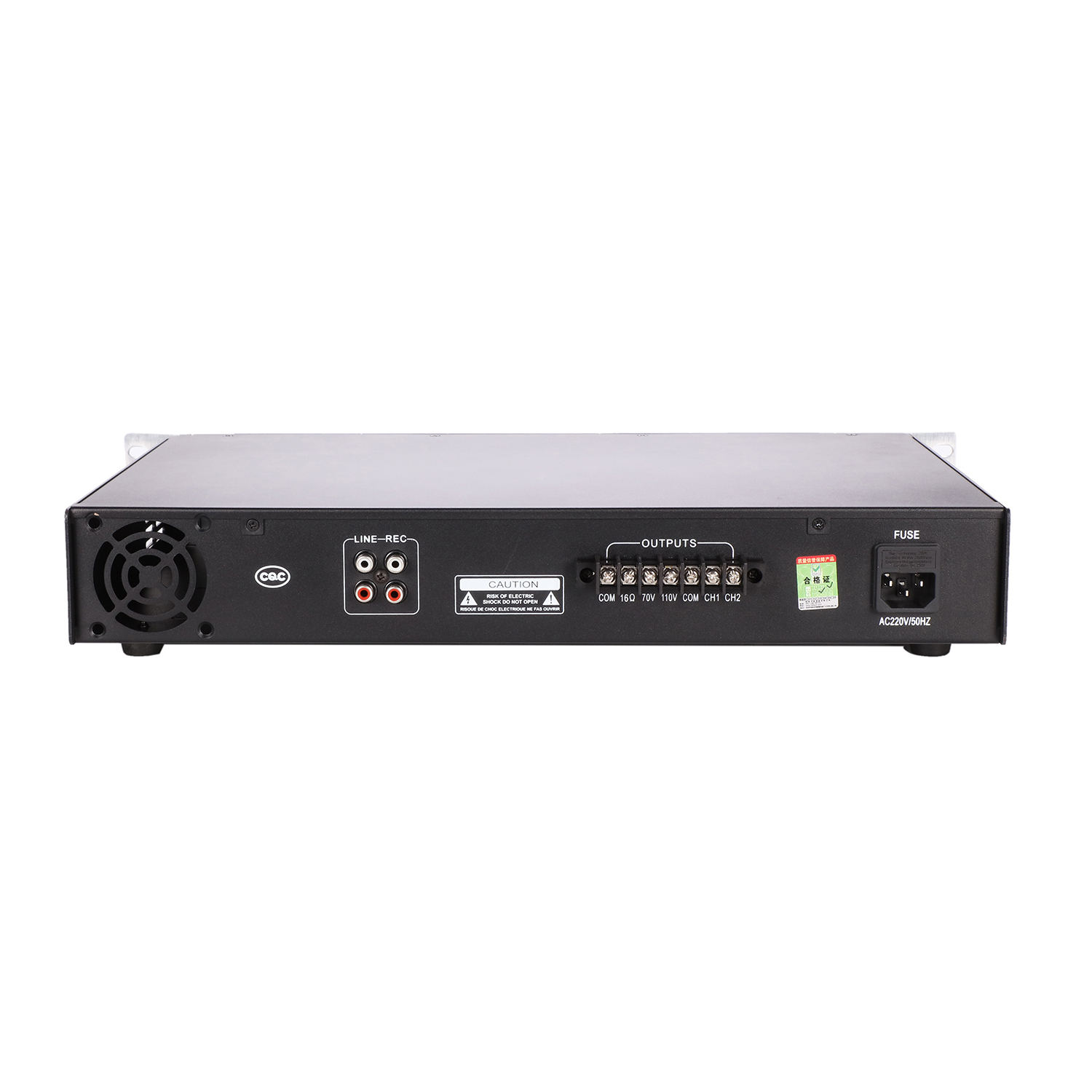

J08D 80W 70V/100V 350W Integrated Power Amplifier Home Audio Karaoke PA System with Mic Input

Model: J08D

1. Rated output power: 80W

2. Output configuration: 4-16Ω/70V/100V

3. Frequency response: 60Hz-16KHz ≤±2dB

4. Total harmonic distortion: 0.1% (1KHz: 0dB)

5. Signal-to-noise ratio: Microphone: 66dB; Line: 102dB

6. Input sensitivity: Microphone: -50dB/600Ω; Line: -10dB/10KΩ

7. Power supply: AC110V-220V/50Hz

8. Dimensions: 480mm x 310mm x 80mm

9. Input voltage: 220V

10. Features: Aluminum alloy panel with handle and robust metal chassis.

Feature Description:

1. Dual-zone output with individual volume control for each channel;

2. Equipped with display screen and remote control;

3. Supports 2 microphone inputs, 1 audio input, and 1 audio output;

4. Features high-low frequency adjustment with independent volume control for microphones, audio circuits, and MP3 playback;

5. Compatible with USB/SD card interfaces, radio functionality, and wireless Bluetooth connectivity.

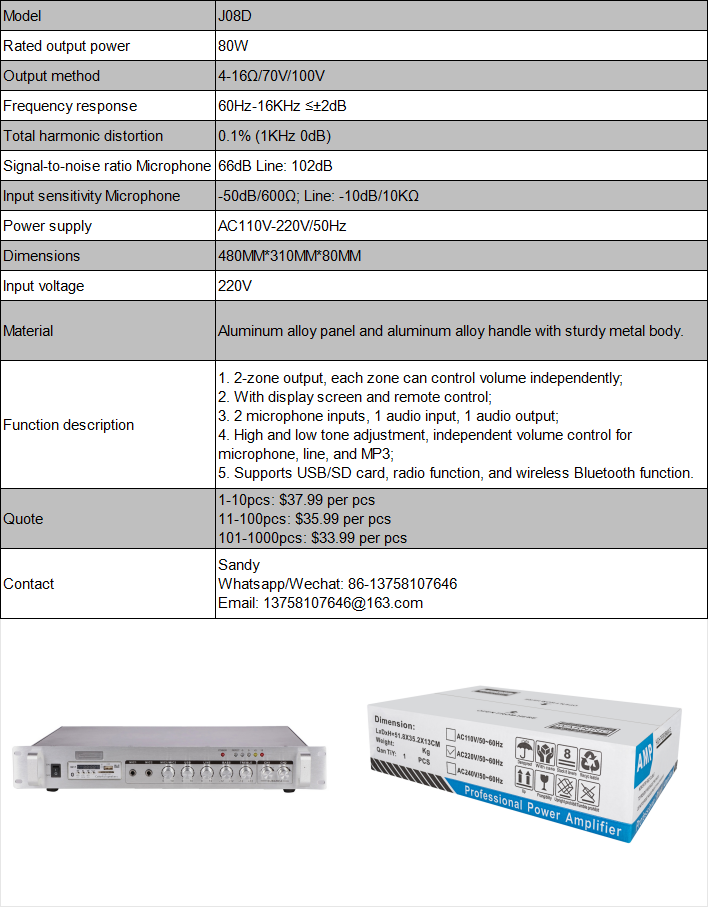

Product Description

524262d2b7fbc7885c0f3087c46f54ee

J08D

Model	J08D
Rated output power	80W
Output method	4-16Ω/70V/100V
Frequency response	60Hz-16KHz ≤±2dB
Total harmonic distortion	0.1% (1KHz 0dB)
Signal-to-noise ratio Microphone	66dB Line: 102dB
Input sensitivity Microphone	-50dB/600Ω; Line: -10dB/10KΩ
Power supply	AC110V-220V/50Hz
Dimensions	480MM310MM80MM
Input voltage	220V
Material	Aluminum alloy panel and aluminum alloy handle with sturdy metal body.
Function description	1. 2-zone output, each zone can control volume independently; 2. With display screen and remote control; 3. 2 microphone inputs, 1 audio input, 1 audio output; 4. High and low tone adjustment, independent volume control for microphone, line, and MP3; 5. Supports USB/SD card, radio function, and wireless Bluetooth function.
Quote	1-10pcs: $37.99 per pcs 11-100pcs: $35.99 per pcs 101-1000pcs: $33.99 per pcs
Contact	Sandy Whatsapp/Wechat: 86-13758107646 Email: 13758107646@163.com
