PA-5150USBD 150W 6-Zone Audio Power Amplifier Aluminum Alloy Home Audio Receiver PA Amp

Availability:
Inquire Add to Basket

  • PA-5150USBD

  • KACAUDIO

  • 8518500000

Product Description

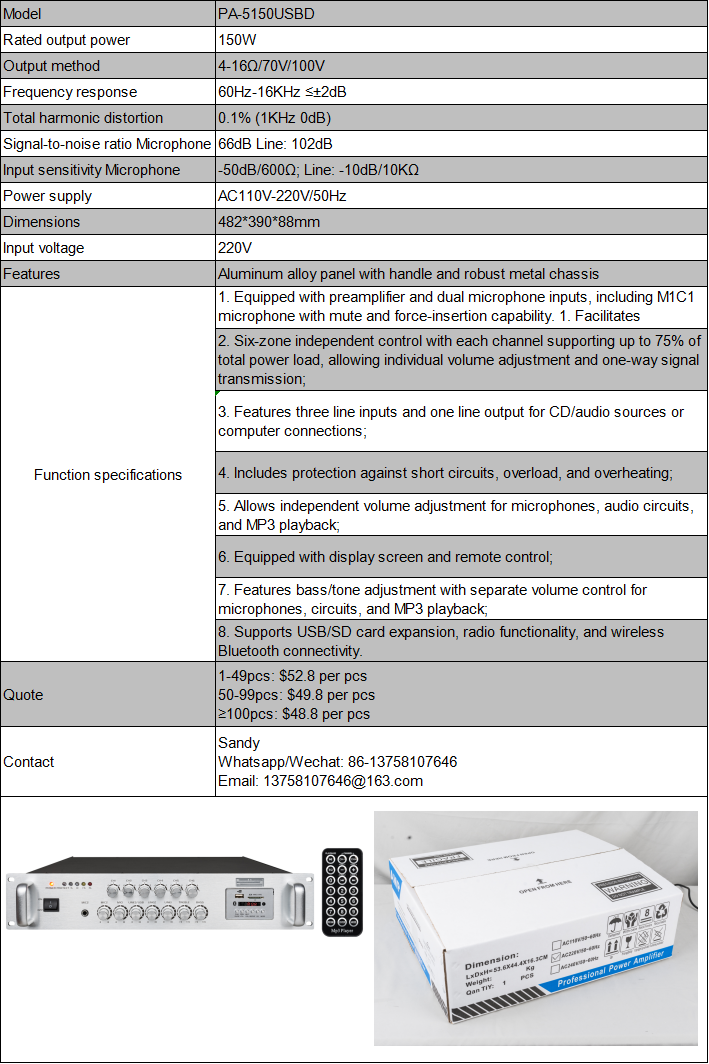

PA-5150USBD

PA-5150USBD
ModelPA-5150USBD
Rated output power150W
Output method4-16Ω/70V/100V
Frequency response60Hz-16KHz ≤±2dB
Total harmonic distortion0.1% (1KHz 0dB)
Signal-to-noise ratioMicrophone 66dB Line: 102dB
Input sensitivityMicrophone -50dB/600Ω; Line: -10dB/10KΩ
Power supplyAC110V-220V/50Hz
Dimensions482×390×88mm
Input voltage220V
FeaturesAluminum alloy panel with handle and robust metal chassis
Function specifications

1. Equipped with preamplifier and dual microphone inputs, including M1C1 microphone with mute and force-insertion capability.
2. Six-zone independent control with each channel supporting up to 75% of total power load, allowing individual volume adjustment and one-way signal transmission;
3. Features three line inputs and one line output for CD/audio sources or computer connections;
4. Includes protection against short circuits, overload, and overheating;
5. Allows independent volume adjustment for microphones, audio circuits, and MP3 playback;
6. Equipped with display screen and remote control;
7. Features bass/tone adjustment with separate volume control for microphones, circuits, and MP3 playback;
8. Supports USB/SD card expansion, radio functionality, and wireless Bluetooth connectivity.

Quote

1-49pcs: $52.8 per pcs
50-99pcs: $49.8 per pcs
≥100pcs: $48.8 per pcs

Contact

Sandy
Whatsapp/Wechat: 86-13758107646
Email: 13758107646@163.com
