WE-2020
KACAUDIO
8518500000

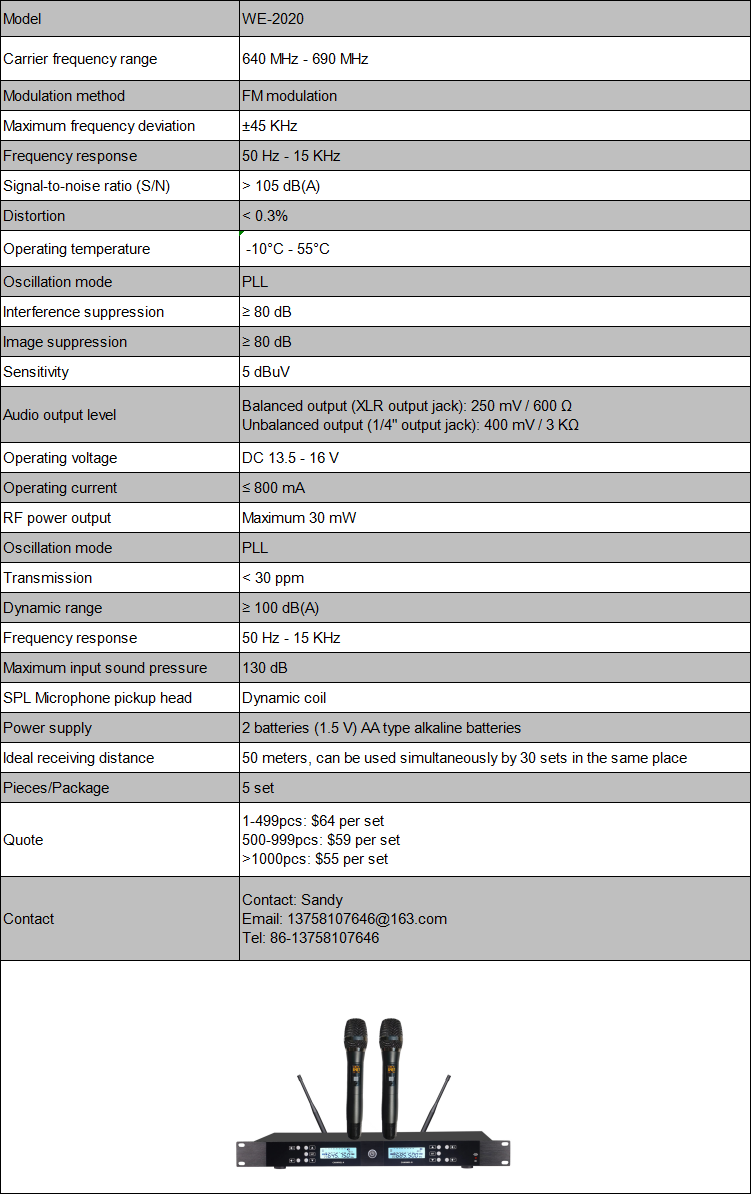

Model | WE-2020 |
Carrier frequency range | 640 MHz - 690 MHz |
Modulation method | FM modulation |
Maximum frequency deviation | ±45 KHz |
Frequency response | 50 Hz - 15 KHz |
Signal-to-noise ratio (S/N) | > 105 dB(A) |
Distortion | < 0.3% |
Operating temperature | -10°C - 55°C |
Oscillation mode | PLL |
Interference suppression | ≥ 80 dB |
Image suppression | ≥ 80 dB |
Sensitivity | 5 dBuV |
Audio output level | Balanced output (XLR output jack): 250 mV / 600 Ω Unbalanced output (1/4" output jack): 400 mV / 3 KΩ |
Operating voltage | DC 13.5 - 16 V |
Operating current | ≤ 800 mA |
RF power output | Maximum 30 mW |
Oscillation mode (transmitter) | PLL |
Frequency stability of transmission | < 30 ppm |
Dynamic range | ≥ 100 dB(A) |
Frequency response (transmitter) | 50 Hz - 15 KHz |
Maximum input sound pressure | 130 dB |
SPL Microphone pickup head | Dynamic coil |
Power supply | 2 batteries (1.5 V) AA type alkaline batteries |
Ideal receiving distance | 50 meters, can be used simultaneously by 30 sets in the same place |
Pieces/Package | 5 set |
Quote | 1-499set: $64 per set 500-999set: $59 per set >1000set: $55 per set |
Contact | Contact: Sandy Email: 13758107646@163.com Tel: 86-13758107646 |
