WE-3018
KACAUDIO
8518500000

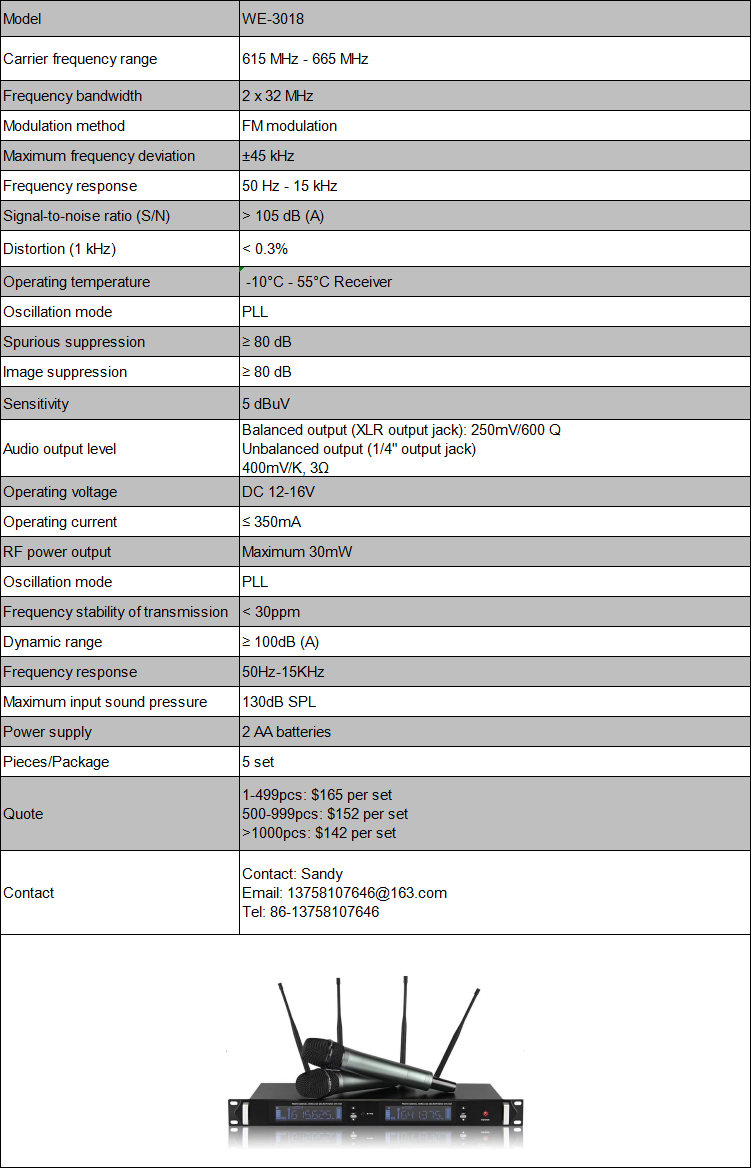

Model | WE-3018 |
Carrier frequency range | 615 MHz - 665 MHz |
Frequency bandwidth | 2 x 32 MHz |
Modulation method | FM modulation |
Maximum frequency deviation | ±45 kHz |
Frequency response | 50 Hz - 15 kHz |
Signal-to-noise ratio (S/N) | > 105 dB (A) |
Distortion (1 kHz) | < 0.3% |
Operating temperature | -10°C - 55°C Receiver |
Oscillation mode | PLL |
Spurious suppression | ≥ 80 dB |
Image suppression | ≥ 80 dB |
Sensitivity | 5 dBuV |
Audio output level | Balanced output (XLR output jack): 250mV/600 Ω Unbalanced output (1/4" output jack): 400mV/1K, 3Ω |
Operating voltage | DC 12-16V |
Operating current | ≤ 350mA |
RF power output | Maximum 30mW |
Oscillation mode (transmitter) | PLL |
Frequency stability of transmission | < 30ppm |
Dynamic range | ≥ 100dB (A) |
Frequency response (transmitter) | 50Hz-15KHz |
Maximum input sound pressure | 130dB SPL |
Power supply | 2 AA batteries |
Pieces/Package | 5 set |
Quote | 1-499set: $165 per set 500-999set: $152 per set >1000set: $142 per set |
Contact | Contact: Sandy Email: 13758107646@163.com Tel: 86-13758107646 |
